COMPLEMENT SPEAKER
Feature:
Compact enclosure design, suitable for ceiling mounting.
High-performance speaker units for extended frequency response, with neodymium iron boron magnets for the high-frequency driver.
Multiple mounting angles for flexible selection of coverage angles.
External digital sound processing for optimized crossover frequency control to maximize speaker performance.
15 M6 suspension points for versatile and convenient hanging installations.
Low-Frequency Driver: 50mm voice coil, 200W, 8Ω
High-Frequency Driver: 44mm voice coil, 50W, 8Ω
Product Dimensions (WxHxD): 510x270x260mm
Net Weight: 12kg
Packaging Dimensions: 410x395x675mm
Gross Weight: 21kg
Quantity per Packaging: 1

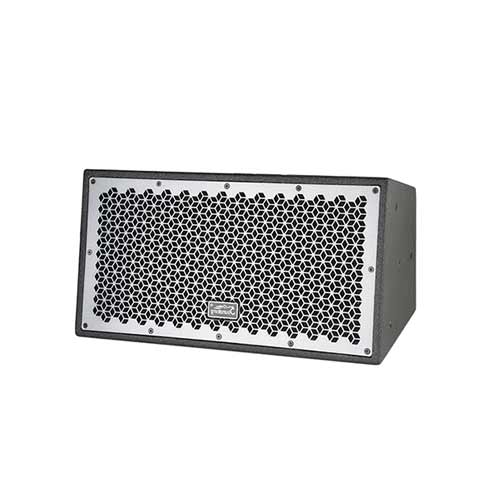

Product Description
TS-UF is composed of an 8" low-frequency paper cone driver and a 1.73" high-frequency compression driver. It features a high-frequency horn with a coverage angle of 100° (horizontal) x 70° (vertical). To fully utilize the speaker's performance, the internal speaker crossover is kept simple, and external digital sound processing is used for optimized crossover frequency control. The horn is made of fiberglass, providing delicate sound reproduction and excellent sound imaging.
The enclosure is constructed using 12mm Baltic birch plywood layers in a grooved structure, offering high rigidity and minimal sound coloration. The speaker is equipped with 15 M6 suspension points, and the internal corner iron ensures secure and reliable hanging installations.
The TS-UF speaker is designed to deliver clear and balanced sound reinforcement in a compact and versatile form factor, making it suitable for a variety of installation scenarios, including ceiling-mounted applications.
