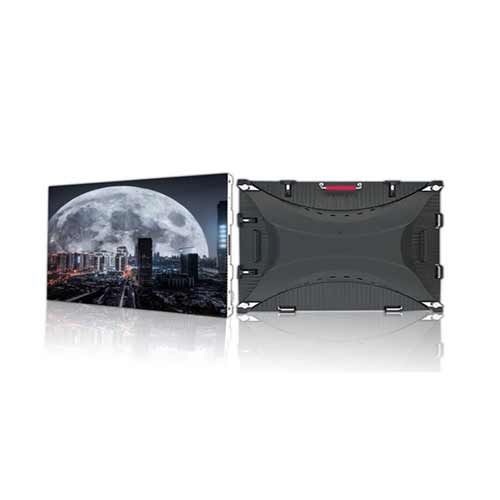

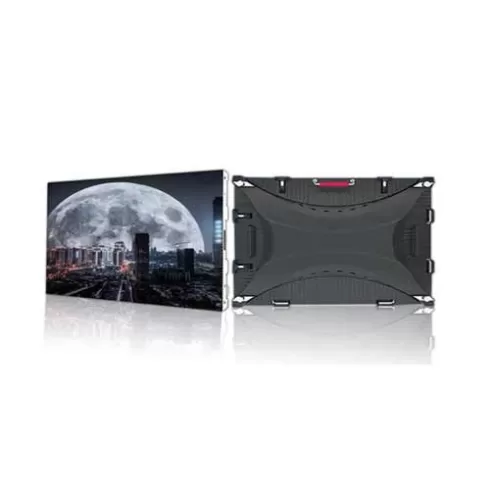

SKV 4B-LED Video Wall
Feature:
The LED splicing TV wall has the characteristics of seamless stitching, high brightness/contrast, wide viewing angle, and accurate color reproduction, with a strong overall feel and good visual effects.
1. Pixel structure: Three-in-one SMD2121 black light is used for surface mounting.
2. Pixel pitch (mm): 4.0.
3. Module resolution (W × H): 80 × 40.
4. Module size (mm): 320 (W) × 160 (H) x 15.
5. Module weight (kg/piece): 0.5.
6. Maximum power consumption of module (W/piece): 18.
7. Pixel density (dots/m²): 62,500.
8. Maintenance method: Front magnetic suction maintenance.
9. Screen brightness (nits): 600.
10. Color temperature (K): adjustable from 8000 to 19000.
11. Horizontal viewing angle (°): 160.
12. Vertical viewing angle (°): 160.
13. Contrast ratio: 3000:1.
14. Uniformity of brightness: ≥97%.
15. Uniformity of chromaticity: within ±0.003Cx,Cy.
16. Best viewing distance (m): ≥2.
17. Peak power consumption (W/m²): 351.
18. Average power consumption (W/m²): 175.
19. Power supply requirement: AC220-240V.
20. Driving mode: Constant current drive.
21. Frame refresh rate (Hz): 60.
22. Refresh rate (Hz): ≥1920.
23. Working temperature range (℃): -10-40.
24. Storage temperature range (℃): -20-60.
25. Working humidity range (RH): non-condensing 10-80%.
26. Storage humidity range (RH): non-condensing 10-85%.
27. Signal interface: HUB 75E interface.
28. Power interface: VH4PIN.
Product Description
Description:
1. Can be spliced in any direction, any size, and any shape.
2. The screen is uniformly consistent, without black lines, achieving truly seamless splicing.
3. High brightness and high contrast.
4. Broadcast-grade gray processing, displaying more image details.
5. It can ensure that the brightness, color temperature, and other elements of each pixel on the screen are controlled within a certain range, achieving consistency in picture display.
6. Ultra-high refresh rate, making the video picture smoother and more delicate.
7. Making the image more realistic and authentic.
8. Nanosecond-level response time, without trailing or ghosting phenomenon.
9. Long screen life.
10. Ultra-wide viewing angle, able to obtain high-quality display effects at various angles.
11. Color gamut coverage is greater than the NTSC color gamut range.
12. The screen body occupies a small space.
