Waterproof Beam Moving Head Light – 350W IP65 Stage Lighting

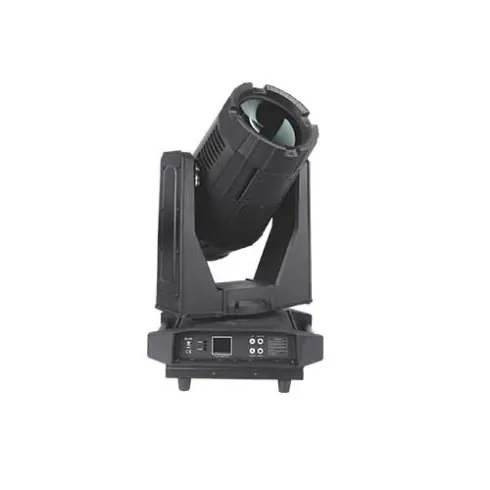

The D8380H waterproof beam moving headlight is a professional-grade lighting solution featuring a 350W OSRAM staar lamp, IP65 waterproof protection, and advanced lighting effects. With dual rotating prisms, rich color effects, and precise DMX control, it is designed for a wide range of indoor and outdoor stage applications.
Product Description
Voltage: 210-230V / 50-60Hz
Power Consumption: 500W
Ballast Type: Electronic ballast
Light Source: OSRAM 350W Italian staar lamp, 8500K color temperature, lifespan of 1500 hours
Color Effects:
13 colors + blank
Half-color and rainbow effects
Pattern Effects:
14 fixed gobos, including 6 colorful glass gobos
Flowing pattern effect with secondary magnification
Prism Effects:
Dual rotating prism design
8-facet prism + honeycomb 24-facet prism
Beam opening and closing effects
Frosting:
Independent frost effect
Optional seven-color prism effect
Strobe and Dimming:
Dual blade strobe: 0.3-13 times/second
0-100% mechanical dimming
Beam and Focus:
Beam angle: 0-3°
Motorized focus with adjustable soft light spot angle
Display:
2.8-inch LCD display with 180° rotation capability
Motor and Movement:
13 ultra-quiet motors with 16-bit drive
Pan: 540°, Tilt: 270° (8-bit/16-bit resolution)
Other Features:
Overheat protection
Remote lamp control and usage time display
Auto-reset functionality for accidental movements
Control Modes:
DMX, Master-Slave mode
16/20 channels
Build and Protection:
Full die-cast aluminum alloy housing
IP65 waterproof rating
Dimensions and Weight:
Dimensions: 400330650mm
Net Weight: 29.6KG
Powerful Light Source: Equipped with a 350W OSRAM staar lamp, offering bright and stable performance with an 8500K color temperature.
Advanced Effects: Features dual prisms, colorful gobos, and frost effects for dynamic and versatile stage lighting.
IP65 Waterproof Protection: Built to withstand outdoor environments with durable aluminum housing and full IP65 waterproofing.
Precision Control: Supports DMX control, master-slave mode, and advanced pan/tilt functions with ultra-quiet motors.
User-Friendly Display: 2.8-inch LCD screen with 180° rotation for easy operation and status monitoring.
Wide Application Scenarios: Ideal for concerts, bars, theaters, weddings, outdoor events, and more.
