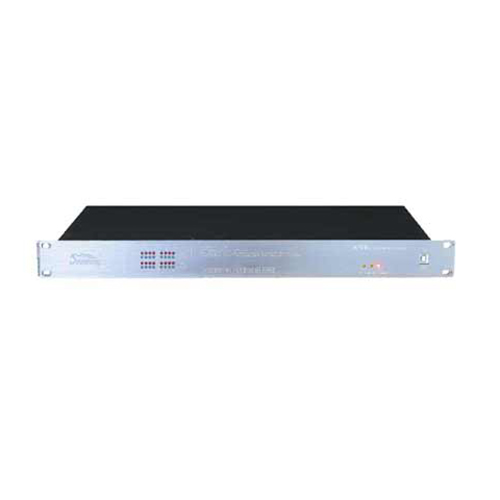

AP88

1. Input Processing:

• Includes high-cut, low-cut, 8-band parametric equalization (PEQ), gain, mute, phase adjustment, delay, and continuous parameter adjustments for precise control over input signals.

2. Output Processing:

• Features crossover control, 9-band PEQ, gain, mute, compression/clipper, phase adjustment, delay, and other customizable options for optimal audio output.

3. PEQ and Filter Adjustments:

• All PEQ gain, bandwidth, and frequency settings can be adjusted continuously. Users can select from parametric EQ, low-shelf filtering, high-shelf filtering, low-cut filtering, and high-cut filtering for flexible signal processing.

4. Matrix Assignment:

• Input and output channels can be freely assigned, and users can rename each channel for easier management.

5. Advanced Filters:

• High-cut and low-cut filters support Butterworth, Linkwitz-Riley, and Bessel filter types with slope options ranging from -6 dB/Oct to -48 dB/Oct.

6. Compressor/Limiter Control:

• Threshold, ratio, attack, and recovery times for output compressors/limiters can be adjusted continuously for smooth dynamics control.

7. Delay Capabilities:

• Input and output channels feature delay times of up to 680ms, providing precise synchronization for complex audio setups.

8. Signal Generator:

• Built-in test signal generator includes pink noise, white noise, and a 20Hz-20kHz sine wave, with adjustable amplitude for calibration purposes.

9. User Interface & Control:

• The front panel includes input and output level indicators, USB control port, and back panel RJ232/RJ485 control ports. One-touch connectivity ensures fast, efficient operation.

10. User Presets:

• Supports 30 user-defined presets, with the ability to store and recall entire system states or individual presets.

11. Multi-Device Control:

• ID setting function allows cascading control of up to 250 units, with password protection for enhanced security.

Applications: Ideal for mid-range audio installations in venues such as conference rooms, theaters, multi-purpose halls, and entertainment venues, providing precise control and superior audio performance.
