ADI audio dedicated DSP, supported by AES67/RAVENNA standard
The BD Series features advanced digital amplifiers designed for professional audio applications. With a compact 1RU chassis, these amplifiers utilize ADI audio dedicated DSP for superior audio processing and support AES67/RAVENNA standards for high-fidelity, low-latency signal transmission. They are engineered for versatility with three operating modes: stereo, parallel, and bridge, alongside adjustable gain settings.
Product Description
Audio Processing: Equipped with an ADI DSP for excellent audio capabilities and compatibility with AES67/RAVENNA standards.
Compact Design: 1RU body maximizes space efficiency while ensuring stable operation.
Voltage Compatibility: Accepts a wide input range of AC100-240V (±10%) for global adaptability.
Energy Efficiency: The intelligent standby feature reduces power consumption when idle, automatically waking upon receiving an audio signal.
Remote Monitoring: Utilizes an 8P8C cable for real-time monitoring of output voltage, current, temperature, and protection status, enhancing maintainability.

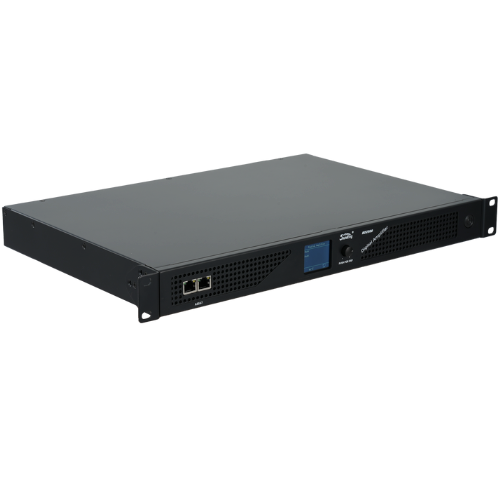

User-Friendly Interface: 2.2″ color LCD screen for intuitive monitoring and adjustments of amplifier parameters.
Modular Design: Independent functional modules allow for easy maintenance and upgrades, minimizing downtime and simplifying repairs.

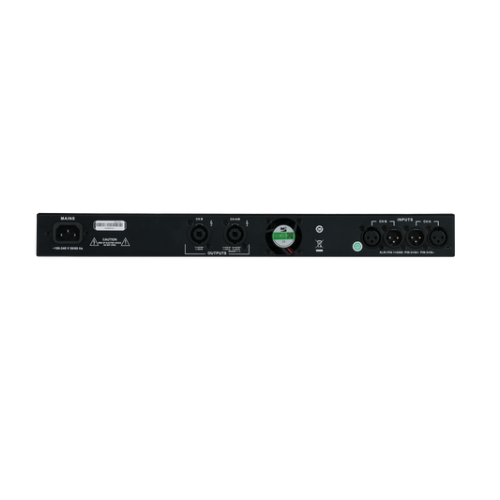

Operational Features: Supports three working modes (stereo, parallel, bridge), adjustable gain (0.5-2.0Vrms), XLR balanced inputs, SPEAKON outputs, and includes clipping limiter and multiple protection mechanisms for safe operation.
| Model | BD2200 | BD2300 | BD2500 | BD21200 | BD4100 | BD4300 | BD4450 | BD4600 | |
| Rated Power | 8Ω/Stereo | 2 x 200W | 2 x 300W | 2 x 500W | 2 x 1200W | 4 x 100W | 4 x 300W | 4 x 450W | 4 x 600W |
| 4Ω/Stereo | 2 x 300W | 2 x 450W | 2 x 750W | 2 x 1800W | 4 x 150W | 4 x 450W | 4 x 675W | 4 x 900W | |
| 8Ω/Bridge | 1 x 600W | 1 x 900W | 1 x 1500W | 1 x 3600W | 2 x 300W | 2 x 900W | 2 x 1350W | 2 x 1800W | |
| RMS Output Voltage | 40V | 49V | 63.2V | 98V | 28.3V | 49V | 60V | 69.3V | |
| Input Sensitivity & Gain | 0.5-2.0Vrms selectable (rated output power, 1kHz, 8Ω) | ||||||||
| Distorion + Noise | Typical Value: 0.05% (10% rated output power, 1kHz, 8Ω) | ||||||||
| Frequency Response | Typical Value: ± 0.5dB (10% rated output power, 20Hz-20kHz, 8Ω) | ||||||||
| Input Impedance | 20kΩ (balanced), 10kΩ (unbalanced) | ||||||||
| Power Requirements | 100-240 VAC(±10%), 50/60Hz | ||||||||
