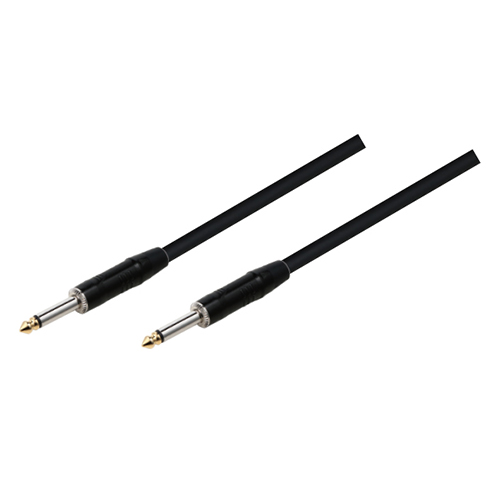

GOLD SERIES BJJ286

1/4" MALE TS to 1/4" MALE TS INSTRUMENT CABLE

The BJJ280 is a high-performance signal transmission cable crafted for durability and exceptional connectivity. Its precision engineering and quality materials make it ideal for demanding professional environments.

Prev Product Next Product

Product Description

Components: BJJ280 consists of CJ2M025BB, GA302, and CJ2M025BB.
High-Quality Signal Transmission: Delivers reliable and clear signal performance.
Robust PVC Jacket: Features a thick, soft PVC jacket designed for enhanced durability.
Advanced Shielding: Equipped with dense copper spiral shielding and semiconductor shielding to reduce interference and ensure signal integrity.

The BJJ280 is perfect for applications that require reliable and high-quality signal transmission.

Product Parameter

Model:	BJJ 286	Type:	Instrument Cable
Length in m:	1-20 m	Connector 1:	1/4" MALE TS(CJ2M025BB)
Connector 2:	1/4" MALE TS(CJ2M025BB)	Total jacket:	PVC, 6.0 mm
No. of Power Conductors:	0	Diameter of Power Cables:	0
No. of Inner Conductors:	2 x 0.23 mm²	AWG:	23
Copper Strand Per Conductor:	Φ0.12 mm BC x 20	Conductor Insulation:	LD-PE
Shielding1:	Conductive PVC	Shielding2:	Φ0.12 mm Cu x 64 SPIRAL
Shielding Factor:	≥90%	Diameter of Cables:	Φ6.0 mm
Capac. Lead to Lead - meter @ 1 kHz:	-	Capac. Lead to shielding - meter @ 1 kHz:	-
Cond.resistance per 1 km:	≤91 Ω	Color:	Black(cable), Black(shell)
