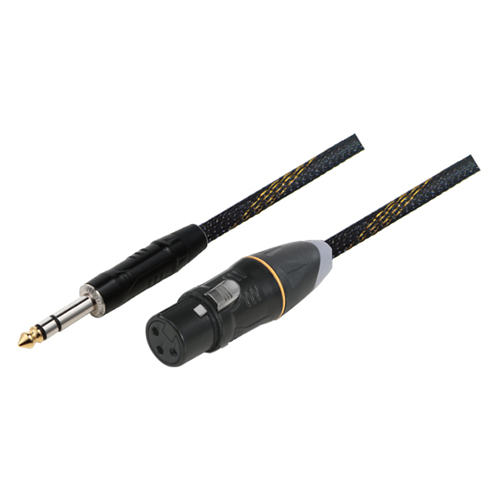

FEMALE XLR to 1/4" MALE TRS MICROPHONE CABLE
The BXJ068 is engineered for high-performance connectivity, offering exceptional signal transmission and durability. Its robust construction ensures reliability in various applications, making it a trusted choice for professionals.
Product Description
Components: The BXJ068 consists of CX3F010B, GA215, and CJ3M014BB.
Material Quality: Crafted from high-quality materials for long-lasting performance.
Signal Transmission: Delivers superior quality signal transmission for effective communication.
Robust Jacket: Features a thick, soft PVC jacket that provides excellent protection against environmental factors.
The BXJ068 is an ideal solution for those seeking reliable and high-quality connectivity in demanding environments.
Product Parameter
| Model: | BXJ 068 | Type: | Microphone Cable |
| Length in m: | 1-20 m | Connector 1: | FEMALE XLR(CX3F010B) |
| Connector 2: | 1/4" MALE TRS(CJ3M014BB) | Total jacket: | Braided PET, Φ6.5 mm |
| No. of Power Conductors: | 0 | Diameter of Power Cables: | - |
| No. of Inner Conductors: | 2 x 0.23 mm² | AWG: | 23 |
| Copper Strand Per Conductor: | Φ0.12 mm BC x 20 | Conductor Insulation: | LD-PE |
| Shielding1: | Conductive PVC | Shielding2: | Φ0.12 mm Cu x 64 SPIRAL |
| Shielding Factor: | ≥90% | Diameter of Cables: | Φ6.5 mm |
| Capac. Lead to Lead - meter @ 1 kHz: | - | Capac. Lead to shielding - meter @ 1 kHz: | - |
| Cond.resistance per 1 km: | ≤91 Ω | Color: | Black(cable), Black(shell) |
