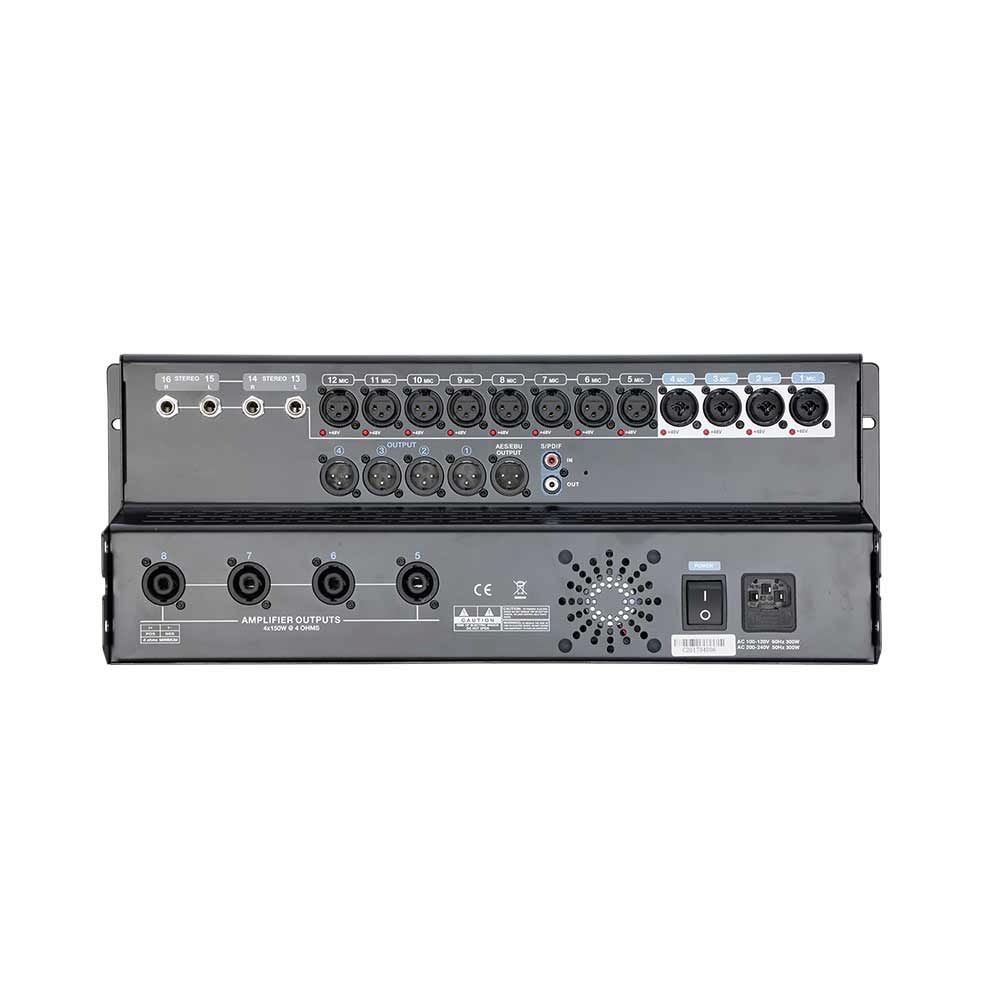

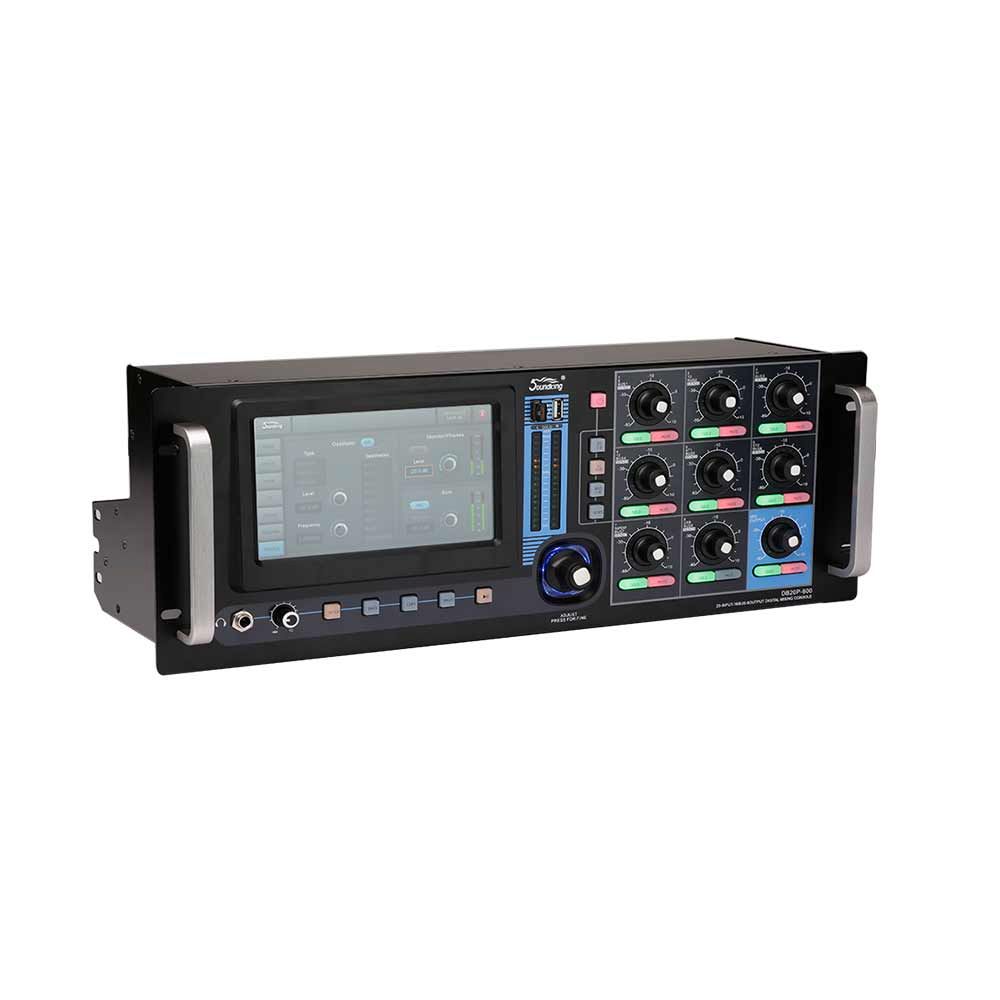

Digital Mixing Console with Built-In Amplifier
The DB20P-600 is a 20-channel rack-mountable digital mixing console with built-in amplifiers, designed for 19” standard rack installation. It combines the best modern digital mixing technology with the familiar interface of traditional analog consoles. Its compact design, user-friendly touch interface, and powerful processing capabilities make it ideal for both professional performances and individuals with less experience. Equipped with premium effects, signal processing, and remote control capabilities via iPad, the DB20P-600 offers versatile functionality for a wide range of audio applications.
Product Description
Input Channels: 20 channels, including 12 microphone inputs (4 COMBO) and 2 stereo digital inputs.
Processor: 4th generation DSP ADI SHARC processor with 40-bit floating point for high-quality processing.
Effects: 8 built-in effects (modulation, delay, reverb, and graphic equalizer) for enhanced sound customization.
Touchscreen: 7-inch high-definition IPS touchscreen for easy operation and control.
USB & Connectivity: Dual USB ports for recording, playback, scene storage, and WiFi/iPad remote control (supports multiple audio formats).
Outputs: 8 customizable XLR analog outputs, AES/EBU and S/PDIF digital outputs, headphone output, and 16 total buses for routing flexibility.
Signal Processing: Includes phase, delay, high-pass filter, 4-band parametric EQ, noise gate, and compression on each channel.
Additional Features: 2.1 mode output, RTA measurement mode for optimizing sound fields, and built-in signal generator.
Product Size: 490 x 230 x 190mm
Weight: 6.1kg (net), 8.2kg (gross)
