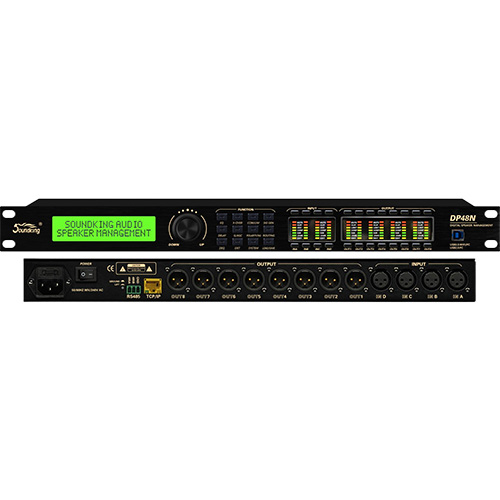

DP48N

DP48N

Digital High-Precision 32-bit DSP Processor – Superior Sound & Flexibility


The DP48N is an advanced 32-bit audio DSP processor engineered to deliver superior sound quality with minimal distortion and high clarity. Featuring a 96 kHz sampling rate, it supports flexible crossover modes, comprehensive input/output equalization, and powerful dynamic audio adjustments. With cascading support for up to 250 devices, remote control via multiple interfaces, and intuitive control features, the DP48N is designed for demanding professional audio environments like live events, studios, and fixed installations.

Prev Product Next Product

Product Description

DSP Type: 32-bit floating point DSP

Sampling Rate: 96 kHz

Inputs/Outputs:

      1. 4-way balanced signal input

      2. 8-way balanced signal output

      3. 12-band full parameter equalization per input

      4. 15-band full parameter equalization per output

      Crossover Modes: Flexible high/low pass crossover points between 20 Hz and 20 kHz

      Control: USB 2.0, USB 3.0, RS485, TCP/IP interfaces

      User Interface: 2x24 mm LCD blue backlight display

      Program Presets: 60 internal user presets, with external data storage via PC

      Delay: Adjustable up to 1000 ms

      Dynamic Adjustments: Noise gate, AGC, DEQ, compression, phase control

      Matrix Routing: Built-in matrix routing function for flexible signal distribution

Features

  1. Superior Sound Quality:

    1. 32-bit high-precision floating point DSP for optimal sound with minimal distortion

    2. 96 kHz high sampling rate ensures accurate sound reproduction

  2. Comprehensive Audio Control:

    1. 12-band full parameter equalization on each input and 15-band on each output

    2. Flexible crossover modes with high/low pass filters adjustable from 20 Hz to 20 kHz

    3. Dynamic audio adjustments including noise gate, AGC, dynamic EQ (DEQ), compression, and phase control for each input

  3. Flexible Routing & Signal Processing:

    1. Built-in matrix routing for versatile output routing to different components

    2. Adjustable delay (up to 1000 ms) with coarse and fine-tuning, and selectable units in milliseconds, meters, or feet

  4. Comprehensive Control Options:

    1. External control via USB, RS485, and TCP/IP network interfaces

    2. Optional UTWR box for internet remote control

    3. Central control integration via a built-in central control code generator

  5. User-Friendly Interface:

    1. 2x24 mm LCD backlight display for clear visibility

    2. Control via simple panel keys and knobs or PC control software

    3. 60 user presets with the ability to store settings externally for easy recall

  6. Security & Flexibility:

    1. Lockable functions to prevent accidental changes, ensuring secure and confidential operation

    2. Cascading capability for up to 250 units, with individual ID-based control

Applications

The DP48N DSP processor is the ideal solution for a range of professional audio environments, including:

  1. Live Events: Flexible and high-quality audio processing for dynamic environments

  2. Studios: Precision control over audio signals for recording, mixing, and mastering

  3. Fixed Installations: Reliable, customizable audio processing for venues like theaters, concert halls, and auditoriums

  4. Sound Systems: Perfect for large-scale sound reinforcement systems, offering seamless control and integration

With its advanced sound processing capabilities and user-friendly features, the DP48N is designed for professionals who require precise control and high-quality audio in live performances, studios, and fixed installations.
