DX32

DX32

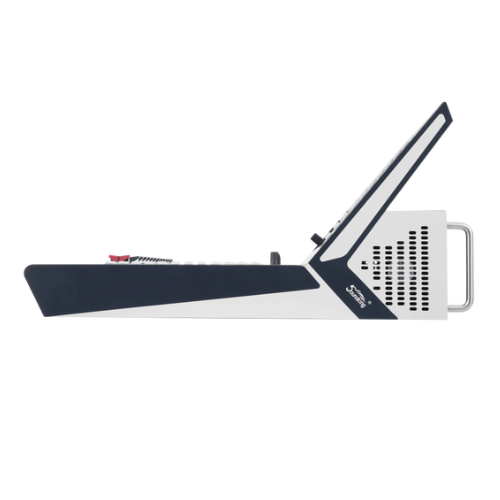

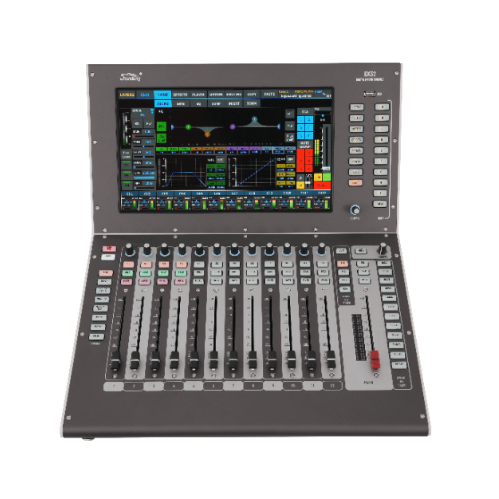

The Soundking DX32 Compact is a high-performance digital mixing console designed for versatile audio management in various settings, including conference rooms, multi-purpose halls, small performances, bars, weddings, banquet halls, auditoriums, exhibitions, churches, small theaters, and rehearsal spaces. With its innovative design and advanced technology, the DX32 offers an extensive range of features, making it ideal for professional audio applications. It supports up to 32 input channels and delivers high-quality sound with a focus on user-friendly operation and efficient control.

Prev Product

Product Description

  1. System Composition:

    • The DX series includes the DX20 (currently in production) and the upcoming DX32, with plans for future models such as the DX24 and DX48.

    • The primary distinction between the DX32 and DX20 is the number of input and output mixing channels, resulting in smoother and more efficient operation.

  2. Key Technologies:

    • Utilizes CADAC technology and advanced audio processing algorithms, ensuring high sound quality and reliability.

    • Features a fourth-generation 32/40-bit floating-point SHARC processor for superior processing capability.

    • It is equipped with high-resolution 24-bit/96kHz Delta Sigma AD/DA converters for excellent audio fidelity.

  3. Technical Specifications:

    • Maximum Input Channels: 32 mono

    • FX Bus Channels: 4 stereo

    • Total Bus Output Channels: 12 stereo

    • Matrix Output Channels: 6 stereo

    • AUTO Mixing: Supports 2 groups, a maximum of 32 customizable channels

    • Display: 13.3" touchscreen for easy navigation and control

    • Memory: Scene memory and library support for quick recall of settings

  4. Core Features:

    • Ensures data security with backup and restore capabilities for settings.

    • Supports remote management via Ethernet and RS485 interfaces, compatible with various platforms.

    • Features 13 physical faders, 13 knobs for quick adjustments, and 9 customizable buttons for user-defined functions.

    • Flexible audio signal routing and adjustment capabilities.

    • Built-in or external effects such as reverb and delay enhance audio richness and spatial quality.

    • Independent control over multiple audio input channels, including routing, phantom power, phase, gain, trim, direct out, delay, high-pass, low-pass, and equalization settings.

  5. Connection Options:

    • 3 USB Type-A ports, 1 RJ-45 LAN interface for Ethernet connectivity, and support for 19-inch rack mounting.

    • 14 XLR analog outputs and 1 XLR digital output (AES/EBU).

    • 16 XLR analog microphone inputs, 2 stereo 6.35mm jacks, 1 stereo 3.15mm jack, and 1 XLR digital input (AES/EBU).

  6. Industry Solutions:

    • The DX32 addresses key industry challenges by offering a highly efficient control layout and exceptional value, promoting the widespread adoption of digital mixing consoles.

    • It integrates seamlessly with AES67 compatible devices for optimal audio transmission and system interoperability, enhancing flexibility and reducing additional equipment costs.

The Soundking DX32 Compact stands out as a powerful and versatile digital mixing solution, combining cutting-edge technology with ease of use for various professional audio applications.
