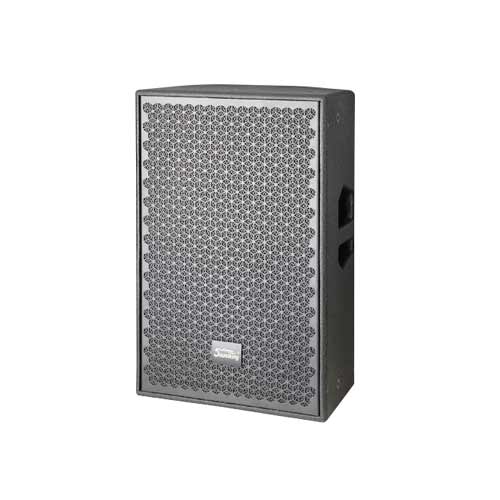

GY12

• Performance:

• Components: The GY12 uses internationally renowned brand components, including a high-performance 12" low-frequency driver and a 3" compression driver with a neodymium magnet design. This ensures powerful, clear, and bright sound with excellent resolution.

• High-Frequency Horn: The constant directional high-frequency horn provides uniform sound coverage and consistent frequency response, optimizing the overall audio experience.

• Crossover Network: An optimized crossover network ensures precise sound reproduction. Dual protection features, including high-frequency over-current protection lamps and PTC, safeguard the speaker from input overload, ensuring reliable performance.

• Design:

• Enclosure: The 15mm plywood enclosure with grooved joints provides superior rigidity and pure sound quality. It is coated with an environmentally friendly water-based sand-textured paint and elastic topcoat, offering abrasion protection and enhancing durability.

• Grille: The 3D diamond-shaped grille, made of high-hardness steel and lined with sound-permeable cotton, offers effective protection for the internal components while adding a stylish visual element.

• Mounting Options: The GY12 is equipped with 13 M6 steel suspension screw holes, allowing for versatile hanging and installation in various environments. The bottom of the enclosure includes a standard φ35mm speaker stand socket, making it suitable for use as a main sound reinforcement speaker or for stage monitoring.

• Specifications:

• Coverage: 80° x 60° coverage ensures broad and even sound distribution across the venue.

• Versatility: The GY12’s multi-suspension point design supports versatile installation options, including suspension, stand support, or stage monitoring, making it adaptable to various venue requirements.

• Applications:

• Use Cases: The GY12 is engineered for high-quality sound reinforcement in sophisticated environments such as high-end conference rooms, multi-purpose halls, upscale clubs, restaurants, hotels, and indoor spaces where dynamic and clear audio is essential.

The GY12 combines superior performance, robust design, and flexible installation options, making it a reliable and versatile solution for professional sound reinforcement in demanding environments.
