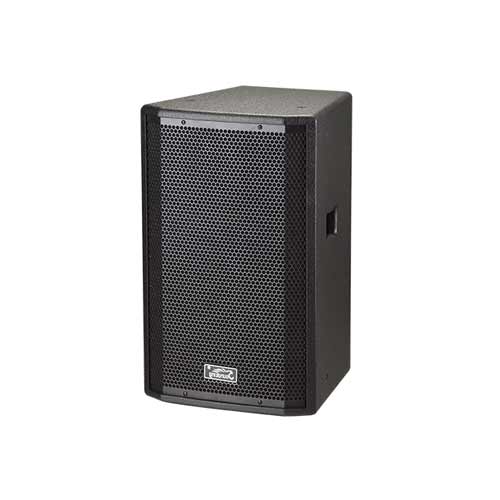

10" Full-Range Speaker | 2-Way 150W High-Performance Audio
This 10-inch Full-Range 2-Way Speaker combines precise audio performance and durability. With a 200W continuous power rating and peak power of 800W, it ensures reliable sound delivery for various professional audio applications.
Product Description
The speaker offers a frequency response of 19Hz-20kHz with high sensitivity (92dB) for clear, dynamic sound. Its PEN diaphragm tweeter with a 34mm voice coil ensures crisp highs, while the 10-inch woofer with a 65mm voice coil delivers robust lows. With 8Ω impedance and a maximum SPL of 123dB, it’s ideal for medium to large venues.
High Power Capacity: 200W continuous, 800W peak for consistent performance.
Wide Frequency Response: 19Hz-20kHz (-10dB) for full-range audio.
Premium Components: 10-inch low-frequency driver, PEN diaphragm tweeter with 34mm coil.
Directional Coverage: 90°x60° horizontal and vertical dispersion for precise sound projection.
Compact Design: Dimensions of 326x484x319mm and a lightweight build of 18.5kg for easy setup.
Perfect for small to medium-sized venues, including conference rooms, churches, event spaces, and professional sound systems.
Product Parameter
| Model: | H10 | Type: | Two-Way 10\\\'\\\' Full-Range Speaker |
| Power Source: | 200W (Continues) / 800W (Peak) | RMS Power(W): | |
| SPL Max.: | 123dB | Frequency Response Range (-): | 55Hz |
| Frequency Response Range (+): | 20kHz | LF Size: | 10\\\\\\\\\\\\\\\'\\\\\\\\\\\\\\\'; 65mm voice coil |
| Number of LFs: | 1 | MF Size: | |
| Number of MFs: | HF Size: | PEN diaphragm tweeter / 34mm voice coil | |
| Number of HFs: | 1 | Height in mm: | 484 |
| Width in mm: | 326 | Depth in mm: | 319 |
| Weight in kg: | 18.5 | Input Connector: | |
| Output Connector: | Housing: | ||
| Color: | Voltage: | ||
| Mounting: |
