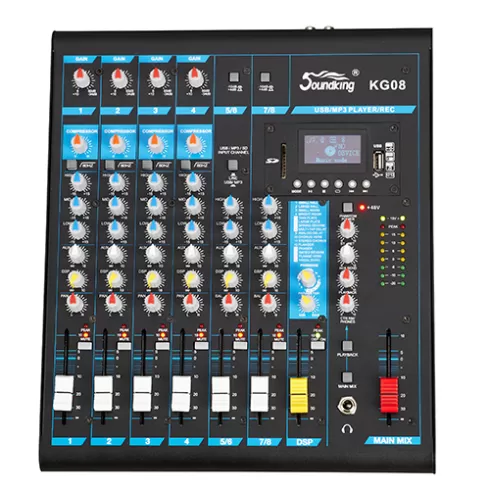

KG08

8-CH ANALOG MIXER


The KG Series 8-Channel Analog Mixer offers reliable and flexible sound management, perfect for parties, indoor recordings, and small live events. With 4 Mic/Line inputs, 2 stereo Line inputs, and a built-in 16-program DSP, this mixer provides the tools necessary for high-quality sound control and playback.

Product Description

  • Channels: 4 Mic/Line inputs, 2 stereo Line inputs

  • DSP: Equipped with a built-in 16-program DSP for customizable sound effects

  • Playback/Recording: Supports playback and recording via USB, SD card, and Bluetooth

  • Phantom Power: 48V phantom power for condenser microphones

  • Compression: Mic channels feature a compression function to maintain clear audio during performances

  • Application: Ideal for parties, indoor recording sessions, and small-scale performances

This compact and versatile mixer is engineered for both amateur and professional use, providing robust features and reliable performance in a portable design.

Tags: CompactPortableBuilt-in CompressionSD CardPlayback and RecordingKG Series

Product Parameter

Model: KG 08 Type: ANALOG MIXER
DSP: YES Gain: YES
Multitrack-Recording: NO USB/SD Direct Recording: YES
USB Play: YES Bluetooth Play: YES
Remote Control: YES Touch Screen: NO
Number of Mono Ins: 4 Number of Stereo Ins: 2
Number of Mono Outs: 2 Number of Stereo Outs: 3
MIC IN Interface: XLR(x4) LINE IN Interface: TRS(x4)
Output Interface: XLR(x2), RCA(x2), TRS(x2) Number of Headphone Connectors: 1
Phantom Power: 48V 19" Rackmount: YES
Height in mm: 92 mm Width in mm: 280 mm
Depth in mm: 330 mm Weight in kg: 4 kg
