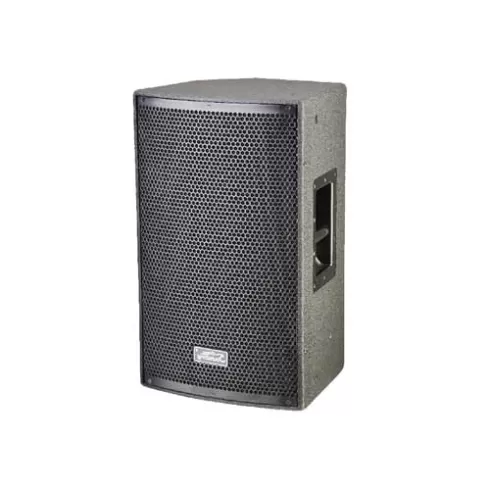

KV12AD

Features:

• Max SPL: 125 dB

• Power: 600 Watt 2-way Peak Power

• Coverage: 80° x 60°

• LF Unit: NdFeB Magnet

• Stage Monitoring: 45° angle

• Hanging Points: 12 M10 hanging points

• Woofer Design: Symmetrical magnetic circuit with high-temperature resistant KAPTON voice coil skeleton

• Cabinet Construction: 15mm plywood with embedded slot splicing for rigidity; environmentally friendly water-based sand grain paint for protection

• Protection: Curved high-hardness steel mesh with internal adhesion of special acoustic cotton

• DSP Processor: 24bit 48kHz for sound effects, three-band equalization, low-cutting pressure limit, time delay, and other functions, adjustable via an LCD display

Applications:

• Stage monitoring

• Bars

• Medium-sized touring shows

The KV Series is specially designed for mixers. The series features a 15mm plywood construction for a delicate tone. The LF design uses a symmetrical ferrite magnet and heat-resisting material for a high-power voice coil, while the HF employs an aluminum diaphragm for special sounds.

Design and Performance:

• The KV12AD features a two-way speaker system design, with a powerful 12" subwoofer that delivers strong, high sound and full energy. The 1.7" compression driver is housed in a constant directivity horn with a PEEK diaphragm, ensuring full translucency of the mid-frequency, effectively improving speaker clarity, and providing uniform sound field coverage. The CLASS-D bi-amplifier, combined with a DSP processor, allows for easy and quick adjustments through panel buttons.
