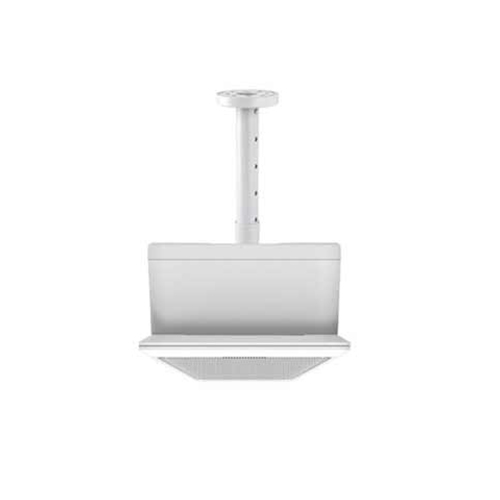

PH06

PH06

High-Performance Passive Coaxial Ceiling Speaker with 116 dB SPL and Uniform Sound Coverage for Meeting Rooms and Conference Applications


The PH06 is a multi-purpose passive coaxial ceiling speaker designed for versatile indoor sound reinforcement. With a maximum SPL of 116 dB and a coverage of 100° x 70°, it delivers clear, bright, and full sound. Ideal for classrooms, conference rooms, and meeting rooms, the PH06 is engineered to provide precise sound image positioning and uniform sound field coverage, minimizing microphone feedback and enhancing sound amplification.

Prev Product Next Product

Product Description

  • Performance:

    • Maximum SPL: 116 dB

    • Coverage Angle: 100° x 70°

    • Sound Quality: Clear, bright, thick, and full

  • Design:

    • Enclosure: PE injection, durable and high-quality construction

    • Installation: Can be mounted on the ceiling or semi-hidden for a discreet appearance

  • Applications:

    • Suitable For: Classrooms, conference rooms, meeting rooms, and other indoor sound reinforcement environments

  • Features:

    • Coaxial Design: Ensures accurate sound image positioning and uniform sound coverage

    • Microphone Feedback Prevention: Effective at reducing microphone screaming and enhancing overall sound clarity

The PH06’s innovative design and robust performance make it an excellent choice for various indoor audio applications, offering both high-quality sound and versatile installation options.

Product Parameter

Model: PH 06 Type: PASSIVE TWO-WAY COAXIAL INSTALLATION SPEAKER
Power Source: PASSIVE RMS Power(W): 120 W
SPL Max.: 116 dB Frequency Response Range (-): 60 Hz (-10dB)
Frequency Response Range (+): 20k Hz (-10dB) LF Size: 6.5"
Number of LFs: 1 MF Size: -
Number of MFs: 0 HF Size: 1"
Number of HFs: 5 Height in mm: 391 mm
Width in mm: 391 mm Depth in mm: 220 mm
Weight in kg: 5 kg Input Connector: Clambs
Output Connector: - Housing: Plastic ABS
Color: White Voltage: -
Mounting: Ceiling, Hanging
