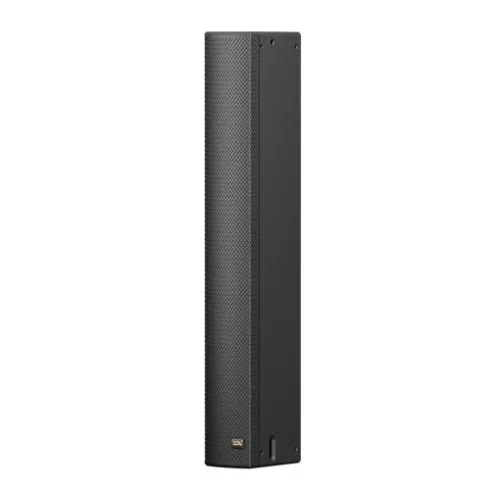

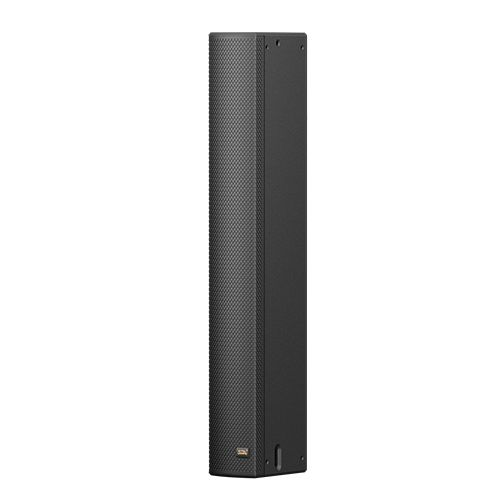

6.5-Inch Active Coaxial Adjustable Directional Array Speaker for Large Venues
The RAY86 Active Coaxial Adjustable Directional Array Speaker is designed for high-performance sound reinforcement in medium to large venues. Featuring 32 1-inch neodymium tweeters and 8 6.5-inch neodymium mid-bass drivers, it delivers exceptional sound clarity and directional accuracy. This speaker includes a powerful 2000W D-class amplifier and built-in DSP for flexible tuning, making it ideal for theme parks, conference halls, and large outdoor events.
Product Description
Speaker Configuration:
32 x 1" neodymium ball-top tweeters and 8 x 6.5" neodymium mid-bass drivers.
Coaxial array layout above the mid-bass drivers for precise sound positioning.
High SPL of up to 133dB for large venue coverage.
Frequency Range: 55Hz to 20kHz, offering full-range audio with smooth frequency and phase response.
Amplification: 2000W high-efficiency D-class amplifier with minimal distortion.
DSP Processing:
DSP module for advanced audio processing, including gain, crossover, EQ, delay, limiting, and program memory.
AES67 and RAVENNA digital network transmission for flexible integration with various systems.
Analog channel transmission with independent channel control for delay and amplitude adjustments.
Beam Steering: Real-time control for adjustable sound beam direction, enhancing coverage and clarity.
Dimensions and Weight:
Dimensions: 1380 x 205 x 370 mm.
Net weight: 39 kg, Gross weight: 45 kg.
Coaxial Array Design: The 1" high-frequency drivers are positioned coaxially above the 6.5" mid-bass drivers, optimizing sound direction and clarity.
High SPL: Achieves an impressive sound pressure level of 133dB, suitable for large-scale events and sound coverage.
Powerful Amplification: Equipped with a 2000W Class D amplifier for clear, distortion-free sound at high output levels.
Advanced DSP: The DSP module allows fine-tuning of gain, EQ, delay, and limiting, with program memory for easy setup storage.
Beam Steering Control: Enables real-time adjustment of the sound beam, improving acoustic performance and coverage across large venues.
Flexible Integration: Supports AES67 and RAVENNA digital network transmission for seamless integration with audio systems, as well as analog input.
Wide Application Range: Perfect for large venues, including command centers, theme parks, multifunctional performance halls, TV studios, conference rooms, and museums.
Compact and Lightweight: The plywood construction ensures durability while keeping the unit lightweight and easy to transport.
The RAY86 is designed for use in large venues such as:
Command centers
Theme parks
Multi-functional performance halls
Large outdoor LED advertising events
TV broadcast studios and high-level approval halls
Conference rooms and auditoriums
Digital cinema installations
Museums and exhibition spaces
This speaker is ideal for situations where high-quality sound reinforcement with precise directional control is required in medium to large-scale environments.
