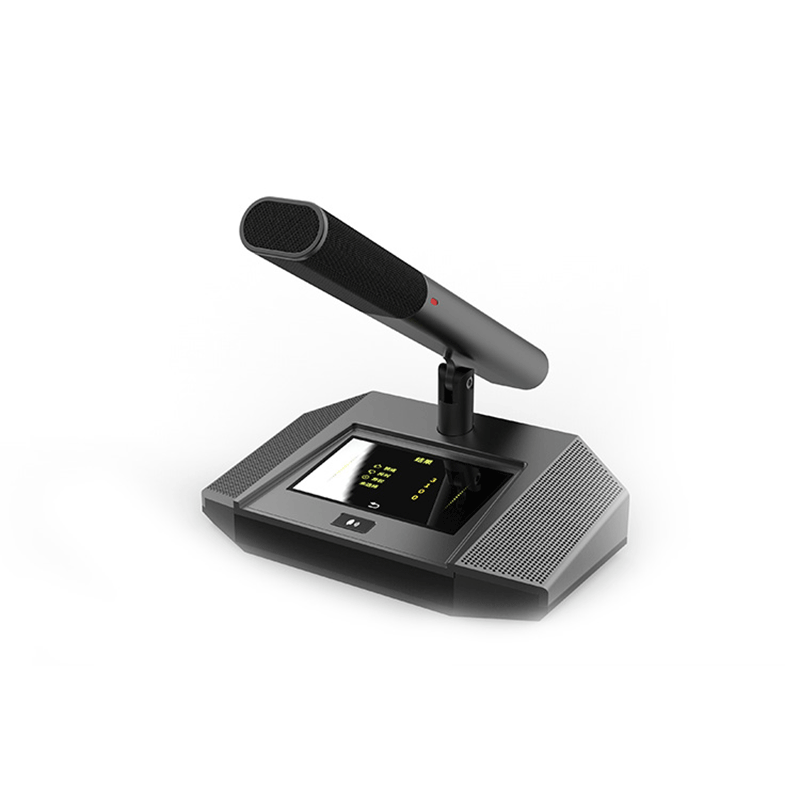

W32DA

DUAL SCREEN DIGITAL-AND-ANALOG-BACKUP CONFERENCE MICROPHONE

Function：
1. Dual-screen digital/analog dual-backup conference microphone (one analog audio channel directly connected to the mixer with 48V power supply, one digital audio channel connected to the main control unit for transmission) to prevent conference interruption.

2. Front LCD touch screen menu with microphone volume control, clock interface, microphone ID display, main/attendee display, call service, and logo display.

3. Rear LCD screen is an electronic nameplate that can display the names of participants or company logos, serving as a guide for seating arrangements.

4. Has sound timing and scheduled sound functions.

5. Resistant to mobile phone interference.

6. Pick-up distance is around 80cm.

7. The chairman unit can be designated by the host backend with priority function.

8. Touch-to-talk key.

Feature:

Dual Receiver Heads: 14mm Diameter Gold Plated Condenser*2

Pointing Characteristics: Hypercentric

Screen: Square 3.5" capacitive touch screen

Frequency Response: 50-20,000 Hz

Sensitivity: -36 dB

Maximum Sound Pressure: 136 dB (1% T.H.D. @ 1kHz, 0dB SPL=2x10Pa)

Phantom Power: 24-48V DC

Microphone Housing Material: All Aluminum
